IMPA 691001

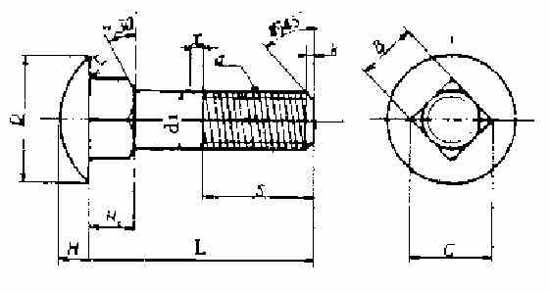

Bolt cap head square neck, with further detail
| IMPA Code | 691001 |
| Unit of Measure | — (per piece) |
| MTML UoM | PCE |
| Chapter | 69. Screws & Nuts |
| Subcategory | Square Neck Bolts Cap Head |
Specification
Description
Nom size M5x0.8 : d1=5 D=11.5-17 H=2.5-5.5 B=6 L=25-50, Nom size M6 : d1=6 D=14-20 H=3-6 B=5 L=30-75, Nom size M8 : d1=8 D=18-26 H=4-7 B=8 L=35-100, Nom size M10 : d1=10 D=22-32 H=5-8 B=10 L=40-100, Nom size M12 : d1=12 D=26-38 H=6-9 B=12 L=45-130, Nom size M16 : d1=16 D=32 H=10 B=16 L=55-140,How to order CODE 691001, Name Cap head square neck bolt, Material, Nominal size & thread, Length
Related codes
Other IMPA codes in Square Neck Bolts Cap Head
